In this page:

View the SNOMED CT concept model diagram for a concept, and save a local copy of its image file.

Prerequisite steps: Browse SNOMED CT International Edition concepts


StepsReferences

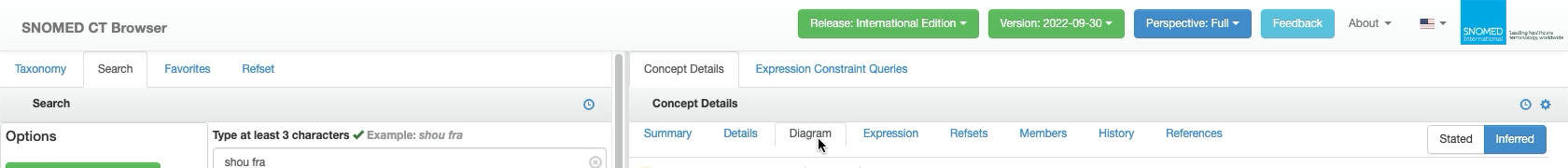

In the SCT Browser Full perspective, press the Diagram tab in the Concept Details panel.

 The Concept Details panel updates to show the following:

  • Schematic representation of the concept model conforming to the SNOMED CT Diagramming Guideline.
  • Download Diagram button

Larger concept model diagrams will add scrollbars to the diagram as needed if it cannot be shown completely within the content area.

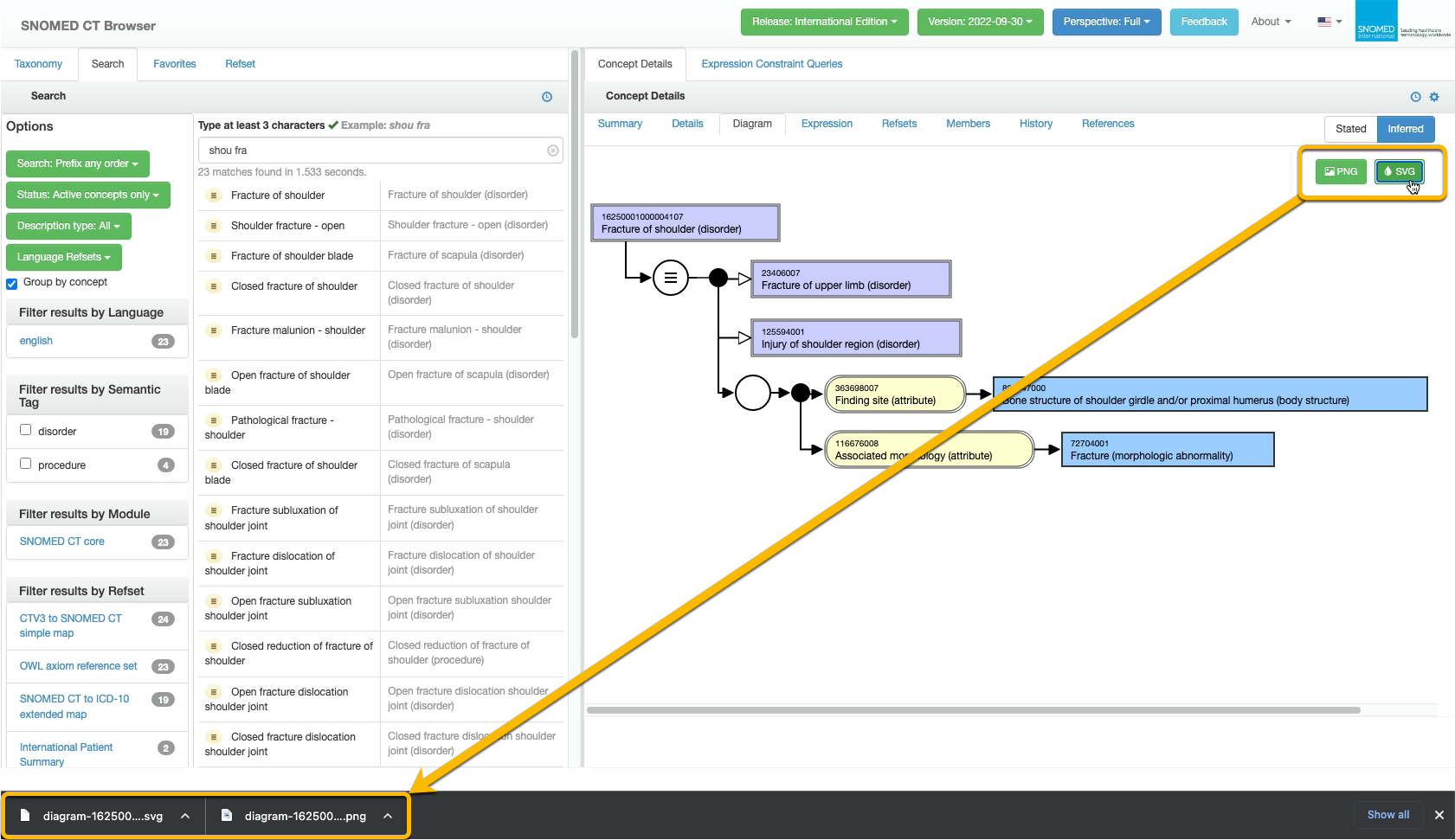

Press Download Diagram  to reveal two further buttons for downloading the diagram in either PNG or SVG format.


Press the appropriate button to download the desired format image file to your local machine.
