In this page:

How to view my organization.

Prerequisite steps: Log in to Reference Set Tool 2.0; View My Dashboard (Admin). Administrator for the Organization must be added  to "Administrators of the Organization" team for your Organization. Contact Rory Davidson - rda@snomed.org to be added.


StepsReferences

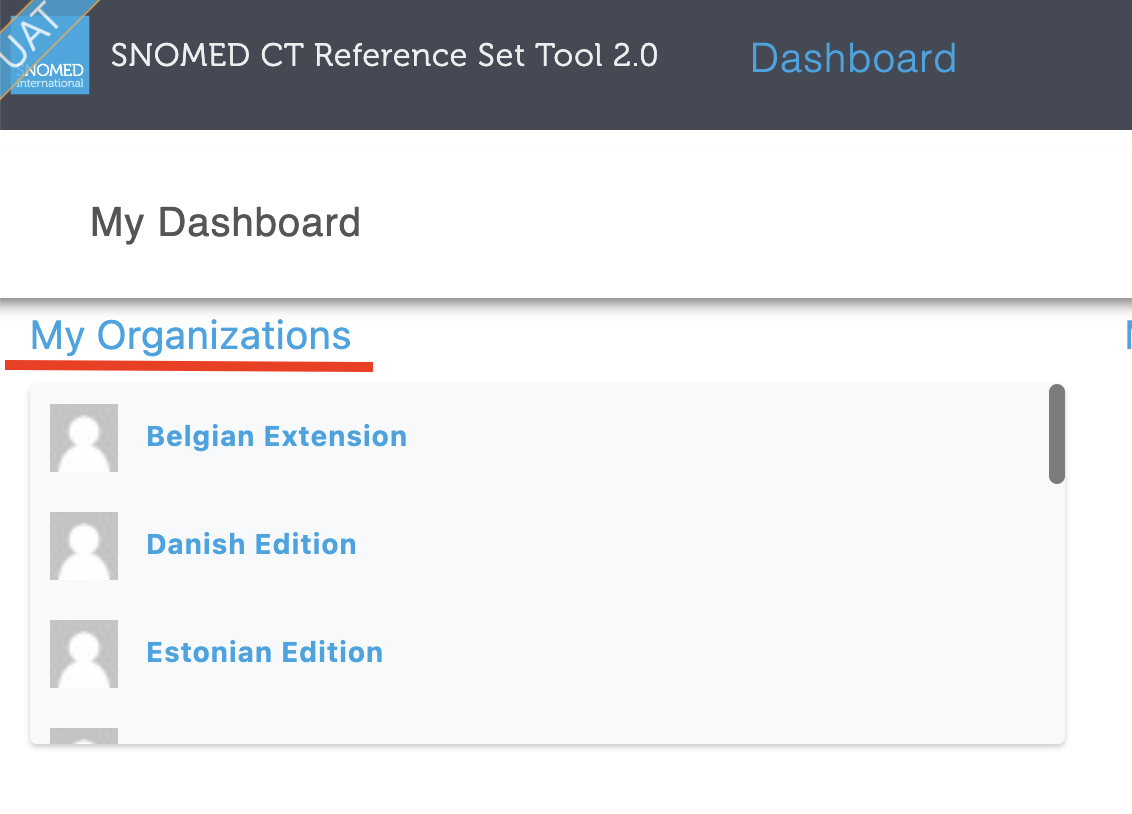

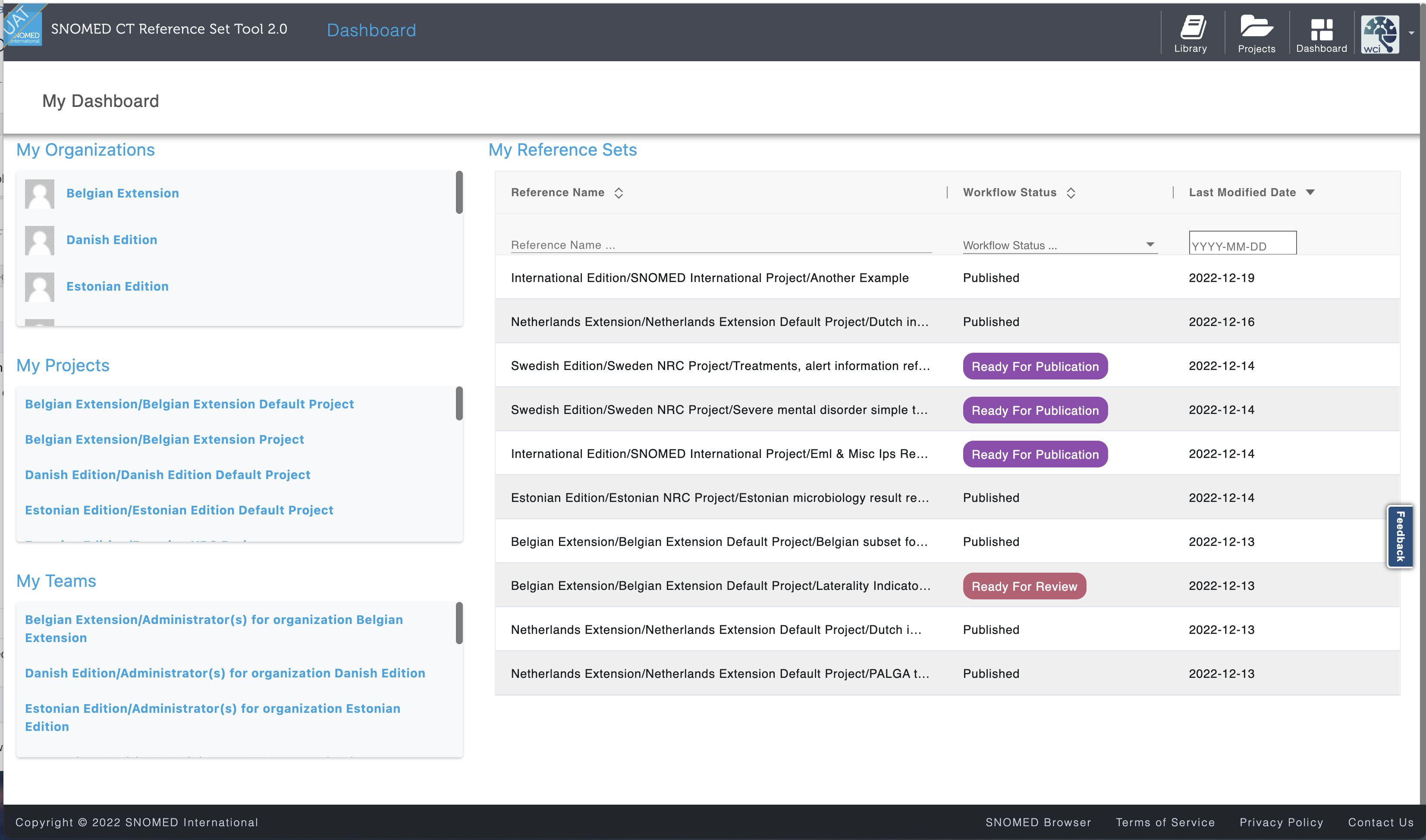

The My Organizations section of the My Dashboard page lists all organizations in which the user is a member.









Select any organization in the list to open the Organizations-Projects page.

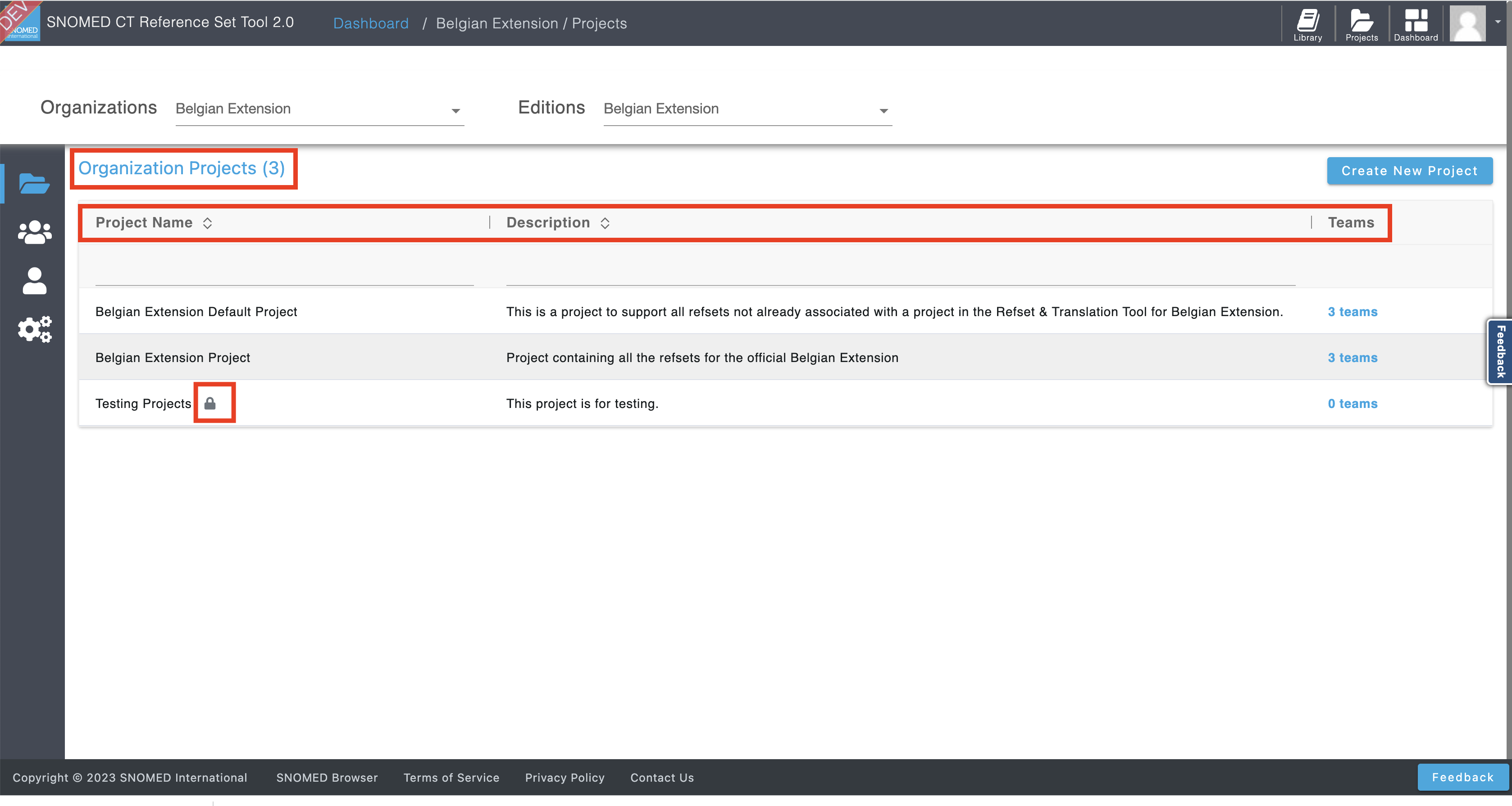

The Organizations-Projects page contains:


Projects table: All the projects in the selected organization in table format (showing Belgian Extension as example).

The table contains the following columns:

    1. Project Name
    2. Lock Icon: Indicates a project that the user is not a member of.
    3. Description: Description of the project.
    4. Teams: Shows the number of teams associated with the project. Hover to see a list of the individual teams within the project.

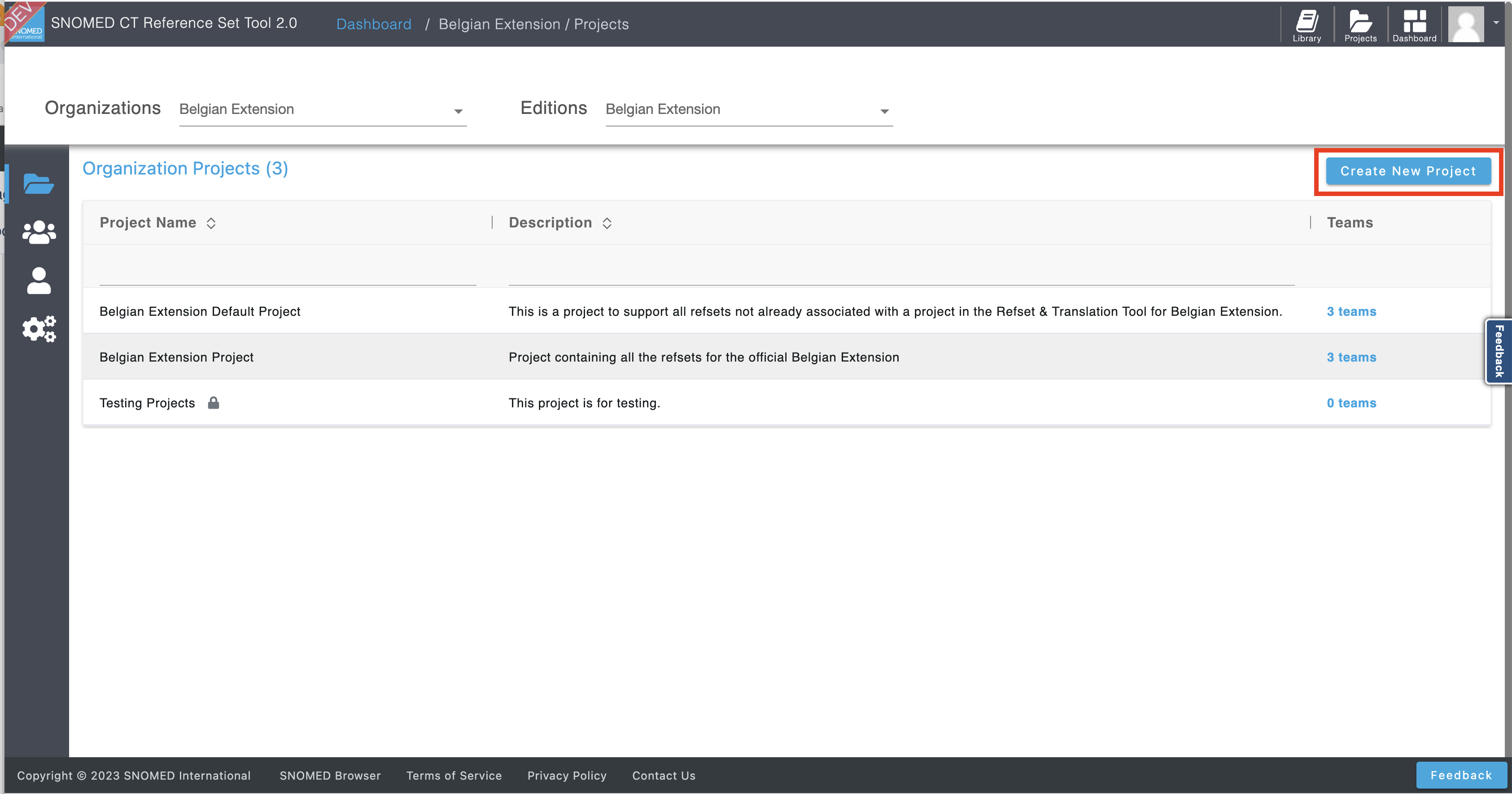

Create New Project Button: An admin may press the button to start the project creation process. The button is only visible on the page for admin users in the organization.

NOTE: In order to Create a New Project, you must first be a member of the team "Administrators of the Organization" for your Organization. Please reach out to Rory Davidson - rda@snomed.org to be added.
