Associations between Component Files

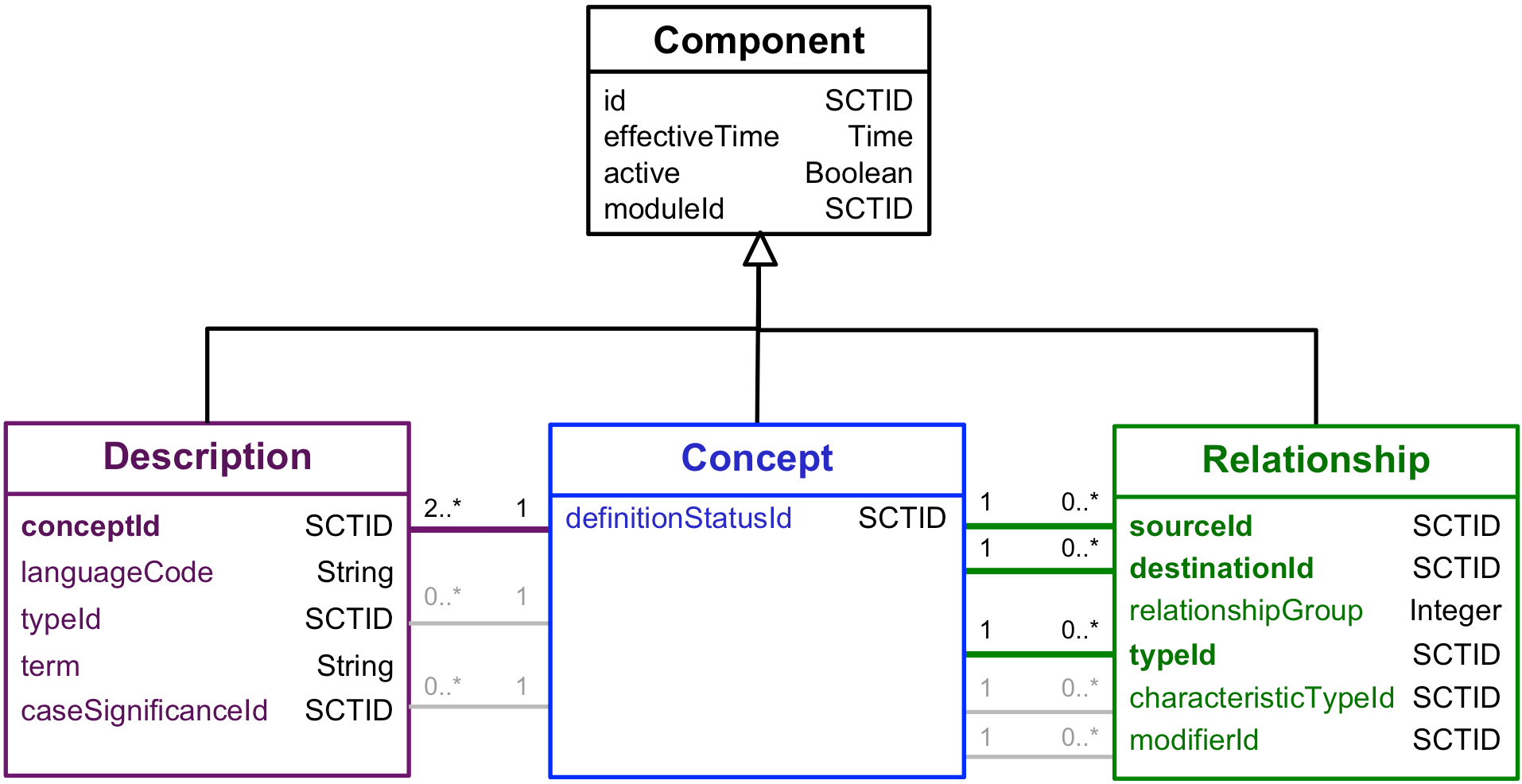

The logical model of

Gloss
PreSpace false t associations

between the components in the release files is shown in

Caption reference
CapRefId logical-relationships CapRefType Figure

. The component class represents columns present in all three component files. The individual classes (description, concept and relationship) only show the additional columns present in those files. The colored lines between descriptions and concepts and between relationships and concepts represent the link between the foreign keys (shown in bold) and the id of the concept. These provide the functional connections between components described in this document. The grey lines indicate additional links between columns that are populated with concept identifiers that provide enumerated values.

Caption label
CapId logical-relationships CapType Figure
Logical Relationships Between Component Files

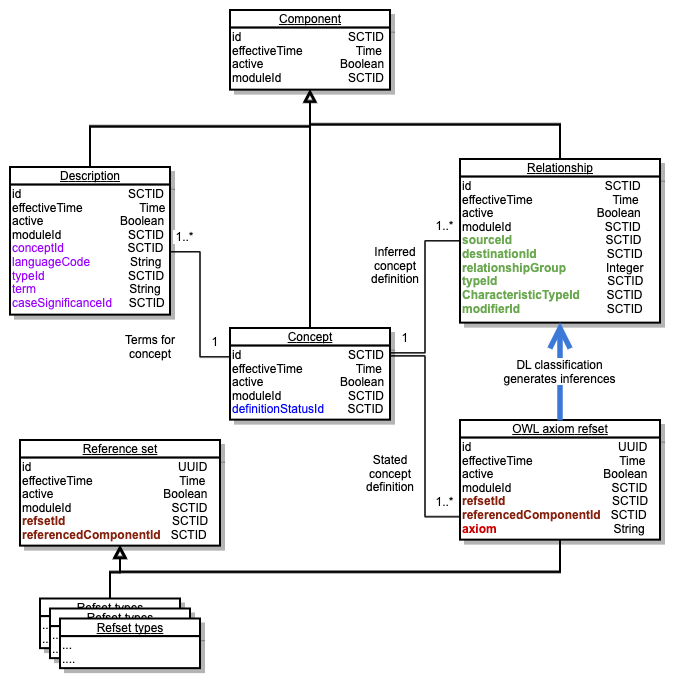

A More Complete View of Release File Associations

Caption reference
CapRefId assoc-2019 CapRefType Figure

 provides an extended view of the associations between release files following changes complete in July 2019 release of SNOMED CT

Footnote Macro
The associations shown on the page are the results of changes that occured between July 2018 and July 2019. For documentation file associations before these changes please refer to Associations Between Release Files Prior to July 2018.

. These changes enable SNOMED CT to use enhanced

Gloss
PreSpace false t description logic

 features and resulted in a significant change to the way in which the

Gloss
PreSpace false t stated view

 of

Gloss
t concept definitions

 are represented. However the changes but did not significantly affect the structure and associations between the main component files shown in

Caption reference
CapRefId logical-relationships CapRefType Figure

Caption label
CapId assoc-2019 CapType Figure
Associations between SNOMED CT Release Files

Detailed Notes of Release File Associations

Each

Gloss
PreSpace false t concept

is represented by a row in the

Specref
RefType file t Concept

 and the concept is identified by the id column in that row. There can be more than one row with the same id but with different effectiveTime values, in which case each of these rows represents a version of that same concept. Thus each row represents a version of a clinical

Gloss
PreSpace false t concept.



Each

Gloss
PreSpace false t concept

has two or more

Gloss
PreSpace false t descriptions

associated with it:

• At least one

  Gloss
  PreSpace false t Fully Specified Name;

  and

• At least one

  Gloss
  PreSpace false t synonym.

Each

Gloss
PreSpace false t description

is represented by a row in the

Specref
RefType file t description file

 and is identified by the id column in that row. There can be more than one row with the same id but with different effectiveTime values, in which case each of these rows represents a version of that same description. Thus each row represents a version of a description. Each description applies to one concept to which it is linked by the conceptId. All versions of a description must relate to exactly the same identified concept (i.e. the conceptId must not change between versions).

Each

Gloss
PreSpace false t relationship,

from a source

Gloss
PreSpace false t concept

to a destination

Gloss
PreSpace false t concept,

is represented by a row in the

Specref
RefType file t relationship file

. There can be more than one row with the same id but with different effectiveTime values, in which case each of these rows represents a version of that same relationship. Thus each row represents a version of a relationship. The source, destination and type each relationship are identified respectively by the sourceId, destinationId and typeId columns. All versions of a relationship must have the same sourceId, destinationId and typeId.  The typeId refers to

Gloss
PreSpace false t concept,

that is also held within the

Specref
RefType file t concept file

. The only concepts that can be used as the relationship typeId are

Concept
t 116680003|is a| ShowFormat inline

or concepts that are subtypes of

Concept
t 410662002 |Concept model attribute|

.

The most basic form of

Gloss
PreSpace false t relationship

is the

Concept
t 116680003|is a| ShowFormat inline

relationship. This relationship states that one

Gloss
PreSpace false t concept

is a subtype of another

Gloss
PreSpace false t concept

. Each subtype concept is connected to its parent subtype(s) by relationships with the typeId

Concept
t 116680003|is a| ShowFormat inline

and this form the main SNOMED CT

Gloss
PreSpace false t hierarchy.

In this

Gloss
PreSpace false t hierarchy,

a

Gloss
PreSpace false t child

Gloss
PreSpace false t concept

may have more than one parent

Gloss
PreSpace false t concept

. The root of the

Gloss
PreSpace false t hierarchy

is

Concept
t 138875005 |SNOMED CT Concept|

, which has a set of top level

Gloss
PreSpace false t children,

each forming its own

Gloss
PreSpace false t sub-hierarchy.

Gloss
PreSpace false t Relationships

with typeid values that are subtypes of

Concept
t 410662002 |Concept model attribute| ShowFormat inline

are referred to as attribute relationship and contribute to the formal definition of the source concept.

---
